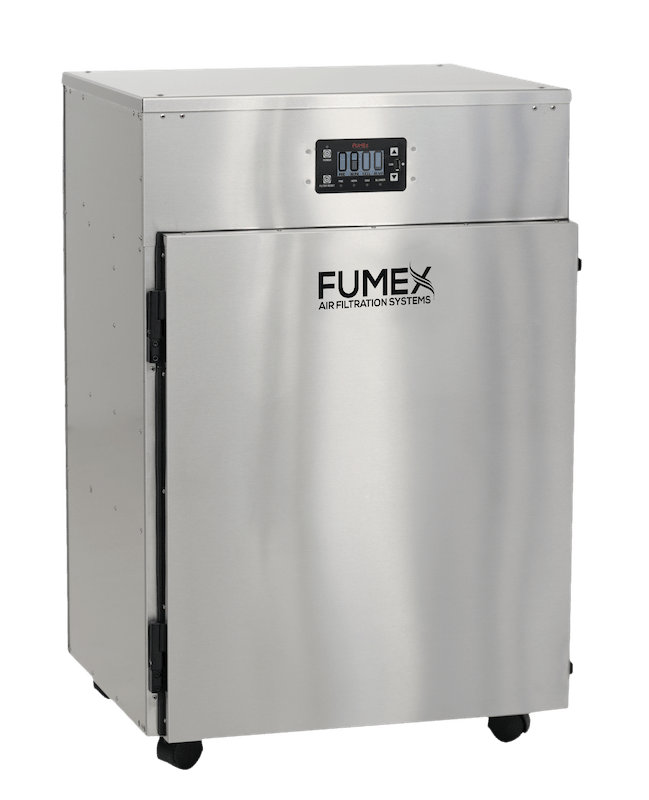

Fumex Model FA5-1

A High Quality Commercial Fume Eater & Dust Collection Air Purifier for Laser Cutting, Marking, Engraving and More with an Advanced Long-Lasting Particle Eliminating HEPA Filter & Special Heavy Duty Industrial Grade Smoke, Odor, and Fume Removing Carbon Air Scrubber System that Specifically Removes The Unique Chemical Gases, Vapors & VOC’s Created by Lasers. The Portable, Powerful, Top-Rated and Relatively Affordable Fumex FA5-2 Industrial Grade Laser Dust Collector and Fume Extractor is Perfect for Workshops using the Epilog Fusion Pro 48 Laser & Similar Big Bed Lasers Systems, it is Made in USA, and On Sale at our Air Purifiers and Cleaners Store, at the Best Possible Cheap Discount Online Sales Price with Free Shipping!

Uses & Benefits:

• Portable HEPA and Carbon Filter Laser Fume and Dust Extraction Air Purifier
• Strong Removal of Dust and Other Particles & Fibers Created During Laser Coding, Marking, Engraving &
  More.

• Strong Removal of VOC’s, Fumes & Chemicals Released During Laser Processes
• Proper Carbon Blend for Over 99% Removal of Laser Fumes
• Clean design limits operator exposure to particulates during filter changes
• Outperforms Other Extractors with Higher CFM Airflow and Costs Less!
• Portable and Easy to Move
• Dustless construction suitable for all environments
• 100 % recyclable construction
• Compact Size
• Long Life, Low Cost Replacement Filters
• Low Noise
• Made in USA!
• Best for: Fume & Dust Removal with Large-Bed Laser Marking, Coding, Cutting, Engraving & Similar Applications with Laser Exhaust Output of 450 CFM or Less. Great for Large Bed Enclosed and Open Bed Lasers

Standard Features:

• 450 CFM Airflow with Powerful 39″ W/C Suction! (305 CFM / 39″ W/C FA5-1 also available in options
  below at lower price)
• 5′ Hose Kit Included!
• Set of Filters Included : 9″ MERV 11 pre-filter, HEPA Filter 99% efficient @ .3 micron, 30 lb Gas/Odor Filter-Blended Media
• Optional Additional 30 lb Carbon Filter for Total of 60 lbs.
• Improved bonded carbon technology maximizes one pass efficiency
• Baffled – sound attenuated Electronic variable speed blower control
• Electronic filter monitoring w/ display included
• Calibrated electronic VOC /gas sensor included!
• Top Rated Fumex 2 Year Warranty

Specifications:

• Cabinet Construction Cabinet: 16 ga . welded steel, powder coat finish
• Sound Level 59 dBA (quiet)
• Unit Dimensions (L x W x H) 13.75” x 15.25” x 27.75”
• Weight: 134 lb / 46 kg (without filters)
• Blowers Performance 405 CFM at 39″ wc
• Blowers Centrifugal Direct-Drive, Brushless Motor
• Electrics 90/250/1/50-60 (120v or 230v plug)
• Pre-wired 3 wire power cable
• 7.5 ft (2.3m) w/plug
• Amp Draw: 6.0 / 4.0
• UL listed compliance
• Standard Filter Set: 9” Pre-Filter: MERV 11 99.999% at 1 micron, 4” – HEPA Filter: 99.97% @ 0.3 micron, 4” – 30 lb Gas / Odor filter
• 1 x 3”, 1 x 4” or 1 x 6” air inlet
• 5 ft. 2-ply rubber hose, smooth core
• 2”/ 51mm or 3”/ 76mm inside diameter w/hose clamps
• (4) Industrial grade wheels
